Steering wheel play check
1. Start the engine with the wheel position for straight steering.
2. Measure free play (backlash) steering wheel, measured around the circumference of the rim.

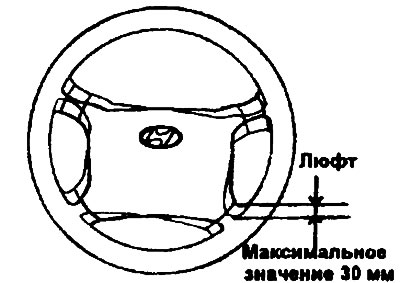

- Backlash rate - 30 mm
3. If the backlash exceeds norm, check up contact of a shaft and spherical hinges of steering draft.
Checking the angle of rotation

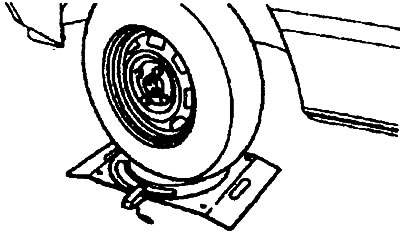

1. Mount the front wheel on a steer gauge and determine the steer angle of the wheel.
Wheel Angle [Normal]:
- Inner wheel - 39°40'12"±2°
- Outer wheel - 32°12'36"
2. If the measured value is not correct, adjust the length of the steering rods.
