Location
1. To prevent damage to the electrical system due to short circuit or overload, each individual electrical circuit is equipped with a fuse.
2. Blocks with fuses are located in the passenger compartment and in the engine compartment.
- A) Vehicle interior: The fuse box is located in front of the driver's seat behind the lower cover of the instrument panel.
Fuse box in the cabin.
- b) Engine Compartment: The fuse and relay box is located in the left front of the engine compartment near the battery.
Fuse box in the engine compartment.
Replacing the fuse
1. If the headlights or other electrical components do not work, then check the fuses and fuses. If any of the elements burned out, then it must be replaced.
Note: Before replacing fuse links, determine the cause of the electrical overload and make any necessary repairs.
Caution: Do not use wire instead of fusible links, even for temporary installations, as this may cause damage to the electrical system and cause a fire.
2. Replacing the fuse or fuse.
- A) Before replacing a fuse, be sure to turn off the target circuit and turn the ignition key to the "LOCK".
- b) Remove the cover from the fuse box and determine which element is burned out.
Note: If you are unsure whether the fuse in question is blown or not, then replace the suspect fuse with another fuse that you are sure is good as a test.

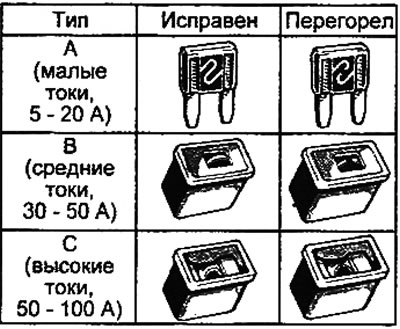

Table. Fuse types.
- V) Set the value of the blown fuse according to the power rating table on the cover.
- G) The fuse boxes in the cabin or engine compartment have special fuse pullers to remove the fuses.
- d) Using a special puller, remove the fuse from the block by pulling it straight out towards you.
Note: If the target circuit is not working and the fuse is not blown, then something else is causing the problem.
- e) Insert a new fuse with the same rating into the clip securely (denomination).
Attention:
- Install a fuse only with the ampere rating indicated on the cover of the fuse box.
- Do not use a higher rated fuse or any other items ("bugs''), such as wire, foil, etc. instead of a blown fuse or fuse. This may cause more serious damage or fire.
- If there is no spare fuse, then in critical situations it is possible to remove the fuses from positions that are not necessary for the normal movement of the vehicle (For example: "RADIO" or "A/C), and use them if their denomination matches the required one.
- If you do not have a fuse with a nominal value, then you should use a fuse with a lower value, as close to the nominal value as possible.
- If the installed new fuse also blows after a short time, this indicates a malfunction in the electrical system.
Note: It is recommended to keep a set of spare fuses in the vehicle.
Fuse box in the cabin. A - power connector, B - ETACS system electronic control unit connector, C - door lock relay No. 1, D - door lock relay No. 2, E - excitation winding resistor, F - rear dimensions relay, G - power window motor relay, H - relay for the rear window heater and side mirror heaters.
Load capacity of fuses
On the cover of the fuse box, the names of the electrical circuits and the characteristics of the fuses and fuse links are indicated.
Note: the location and, possibly, the rating of the fuses in various configurations may differ slightly from those shown in the figures.
Fuse box in the cabin
Table. Universal fuses.
№ | Chain | Nom. |
1 | Electronic control unit for air conditioning, heaters for side mirrors | 10 A |
2 | Alarm | 10 A |
3 | Rear fog lights | 15A |
4 | Air conditioning electronic control unit | 10A |
5 | Electronic control unit (air conditioning, ETACS), sunroof, automatic headlight range control | 10 A |
6 | Door Lock Relay | 15A |
7 | Power front seats | 25 A |
8 | Fuel filler flap and trunk lid open switches | 15 A |
9 | Stop lights | 15 A |
10 | Headlight, xenon headlight. Headlight washer, headlamp leveling system, DRL system | 10 A |
11 | instrument cluster | 10 A |
12 | Hazard switch | 10 A |
13 | A/C Switch, Heater Fan Motor Relay (mode "HIGH") | 10A |
14 | Connector for additional equipment | 15A |
15 | Front seat heaters | 15 A |
16 | SRS system | 15A |
17 | Reversing lights, automatic transmission electronic control unit, automatic transmission pulse generator, vehicle speed sensor | 10 A |
18 | Electronic control unit (immobilizer, maintenance system, constant speed, ETACS), instrument cluster | 10 A |
19 | Constant speed electronic control unit, engine start switch, starter motor (models with manual transmission), relay of standard anti-theft system | 10 A |
20-23 | Not used | 15 A |
24 | Radio, clock, instrument cluster | 10A |
25 | Outdoor lighting and interior lighting | 10 A |
26 | radio tape recorder | 10 A |
27 | Windshield wiper and washer, AQS system | 20 A |
28 | Interior lamp, side door aperture lighting, electrical antenna | 10 A |
29 | Outdoor lighting and interior lighting | 10 A |
30 | Cigarette lighter, power side mirrors | 15 A |
31 | Electronic control unit for the cruise control system | 10 A |
Fuse and relay box in the engine compartment. A - condenser fan relay (HIGH-1 mode), V - headlight relay (dipped beam), C - radiator electric fan relay (HIGH-1 mode), D - condenser fan relay (LOW mode), E - starter relay, F - air conditioning compressor electromagnetic clutch relay, G - condenser fan relay (HIGH-2 mode), H - horn relay, J - radiator electric fan relay (HIGH-2 mode), K - front fog lamp turnip, L - headlight relay (high beam), M - windshield wiper motor relay, N - radiator fan relay (LOW mode).
Fuse and relay box in the engine compartment
Table. Melting inserts.
№ | Chain | Nome |
CON/FAN | Condenser fan motor | 20 A |
POWER WINDOW | Power windows | 40 A |
IGN-1 | Egnition lock (positions ACC, ON) | 30 A |
ABS №1 | ABS electronic control unit | 30 A |
ABS №2 | ABS electronic control unit | 30 A |
IGN-2 | Egnition lock (positions IG2, START) | 30 A |
RAD/ FAN | Radiator fan motor | 30 A |
Table. Special fuses
№ | Chain | Nom. |
1 | Fuel pump motor relay | 20 A |
2 | headlights (dipped beam) | 15 A |
3 | ABS electronic control unit | 10 A |
4 | nozzles | 10 A |
5 | Air conditioning electronic control unit | 10 A |
6 | Automatic transmission control relay | 20 A |
7 | Injection control relay | 30 A |
8 | Ignition coil, ignition system fault sensor | 20 A |
9 | Oxygen sensor | 15 A |
10 | ECM, fuel pump relay, positive crankcase ventilation solenoid valve, idle speed control servo, crankshaft position sensor | 15 A |
11 | Sound signal | 10 A |
12 | headlights (high beam) | 15 A |
13 | Headlight washer motor | 20 A |
14 | Electronic control unit for DRL system, anti-theft siren | 15 A |
15 | Front fog lights | 15 A |
16 | xenon headlight | 15A |
17 | Diode #1 | - |
18 | Spare | 30 A |
19 | Spare | 20 A |
20 | Spare | 15 A |
21 | Spare | 10 A |
22 | Diode #2 | - |
23 | Heater fan | 30 A |
24 | Power connector, fuse #6 | 30 A |
25 | Audio system amplifier | 20 A |
26 | Sunroof, diagnostic socket | 15 A |
27 | Rear position relay | 20 A |
28 | Fuse Box 8 Cabin (fuses No. 2, 3, 7, 8, 9) | 30 A |
29 | Generator, electronic engine control unit | 10 A |
30 | Rear defroster relay and side mirror defrosters | 30 A |
