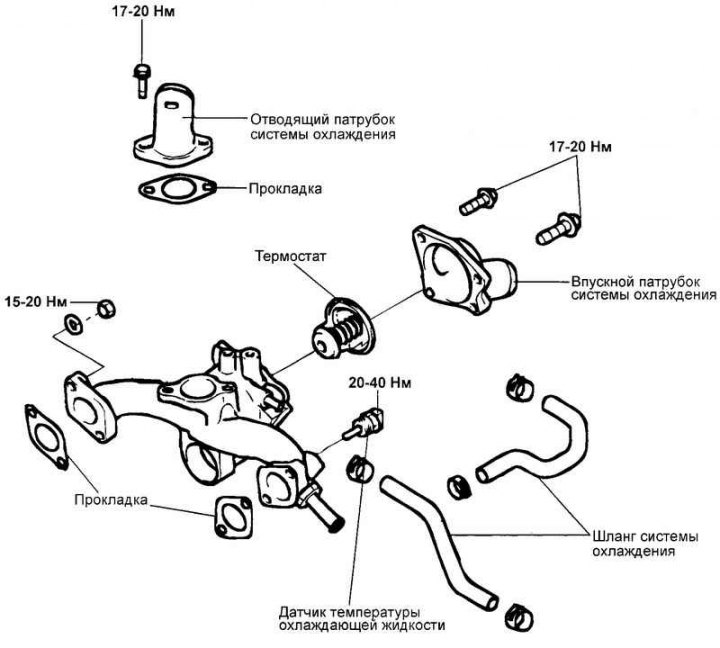

Fig. 2.310. Thermostat components
Removal
Drain the coolant until its level is below the thermostat.
Remove the cooling system inlet pipe and gasket.
Remove the thermostat.
Examination

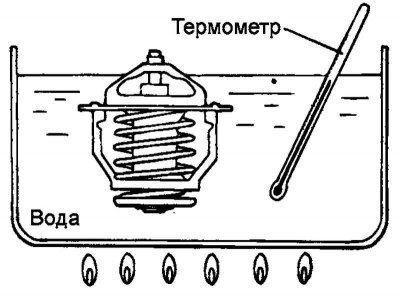

Fig. 2.311. Immersion of the thermostat in a water bath
Place the thermostat in hot coolant or water and check that the thermostat valve opening temperature corresponds to the nominal value. Replace if necessary (Fig. 2.311).
Valve opening start temperature: 82°C.
Full valve opening temperature: 95°C.
Valve stroke (fully open): 8.5 mm.
Installation
Check that the thermostat valve flange is seated correctly in the thermostat housing socket. If the thermostat is not installed correctly, its lower part will touch the rib inside the supply pipe, which will cause the thermostat to malfunction.

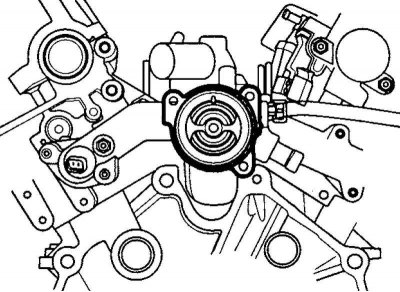

Fig. 2.312. Fastening the outlet pipe
Install the outlet pipe with a new gasket (Fig. 2.312).
Tightening torque of the intake manifold mounting bolts: 17–20 N·m.
Fill the system with fresh coolant.
