Contents: Removal ⇓ Installation ⇓
Removal
Drain the coolant below the sensor installation level.
Disconnect the battery and temperature sensor connector

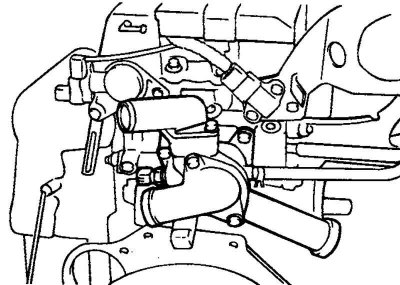

Fig. 2.293. Coolant temperature sensor
[The original version is stored on the website: hyundaibook.ru]
Remove the sensor (Fig. 2.293).
Installation
Apply the recommended sealant to the sensor threads. Tighten the sensor to the specified torque.
Sealant: Three Bond No.1324N or Loctite 262.
Coolant temperature sensor tightening torque: 20–40 Nm.
Connect the temperature sensor connector.
Connect the battery.
Fill the cooling system.
