Contents: Examination ⇓ Assembly ⇓
Fig. 2.291. Cooling system components
Examination
Check the cooling system hoses and tubes for cracks, damage or deposits on their inner walls. Replace if necessary.
Assembly
Place the O-ring on the coolant inlet pipe, apply some coolant or water to its outer surface, and then install the pipe in place.
Note: Do not allow engine oil or grease to come into contact with the surface of the O-ring of the coolant pipe.
Note: Do not allow sand, dust, etc. to enter the connection points of the cooling system supply pipe.
Insert the coolant supply pipe into the coolant pump until it stops.

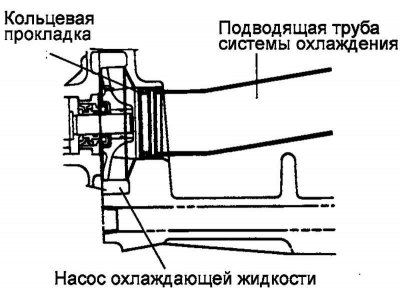

Fig. 2.292. Diagram of installation of a new ring gasket
Do not install a used O-ring. Replace the removed O-ring with a new one (Fig. 2.292).
