Checking the ignition interlock switch (Mitsubishi Matrix)

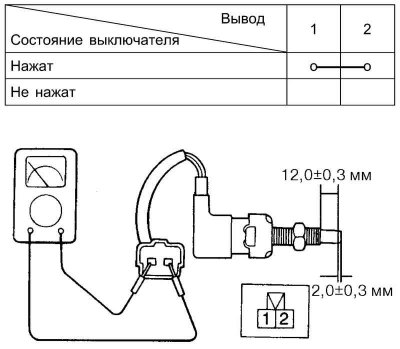

Fig. 3.16. Checking the integrity of the circuit between the switch terminals

Check the integrity of the circuit between the switch terminals (Fig. 3.16).

Installation

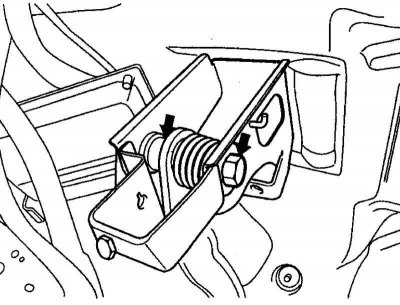

Fig. 3.17. Places to apply universal grease

Apply general purpose grease to the locations indicated by arrows in Figure 3.17.

Tighten the nuts.

Install the cotter pin.

(Material was obtained from an official resource: «HyundaiBook.ru»)
