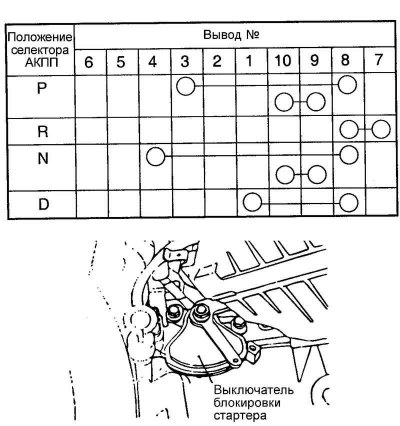

Fig. 3.62. Checking the starter interlock switch circuits
Adjusting the starter interlock switch (automatic transmission selector switch) and automatic transmission control cable

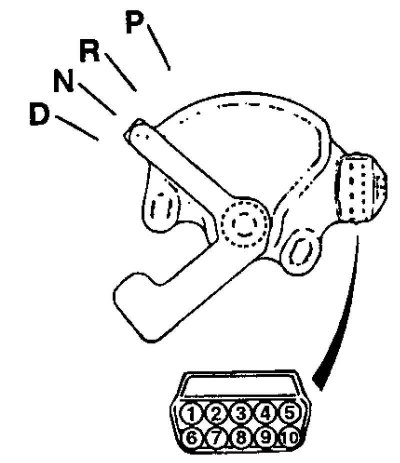

Fig. 3.63. Adjusting the starter interlock switch
Set the automatic transmission selector lever to the "N" position.
Loosen the adjusting nut securing the automatic transmission control cable to the manual control lever.

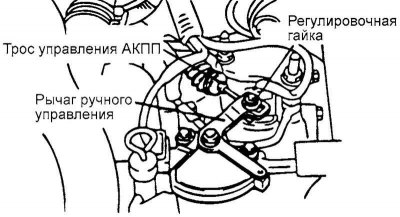

Fig. 3.64. Manual control lever
Install the manual control lever (manual control lever) to the neutral position ("N") (Fig. 3.64).

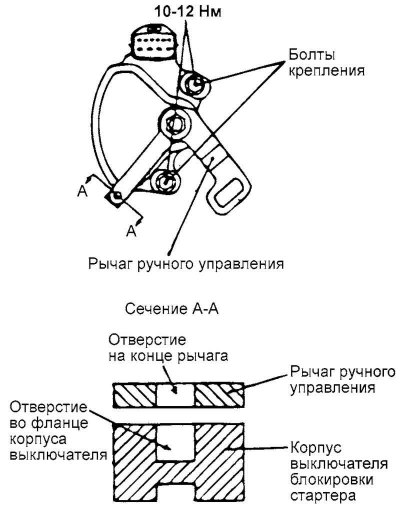

Fig. 3.65. Starter interlock switch mounting bolts
Loosen the bolts securing the starter interlock switch (automatic transmission selector switch) and turn its housing so that the hole in the switch housing flange aligns with the hole at the end of the manual control lever (section A-A in Figure 3.65).
Without changing the position of the starter interlock switch (automatic transmission selector switch), tighten its mounting bolts to the specified torque.

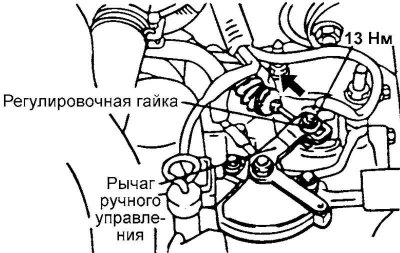

Fig. 3.66. Adjusting nut
Lightly pull the cable connecting the automatic transmission selector lever to the control valve block in the direction indicated by the arrow in Figure 3.66, and then tighten the adjusting nut.
[The material is reprinted from another resource: HyundaiBook.ru]
Make sure that the automatic transmission selector lever is in the "N" position.
Check the correspondence of the gears to be engaged for each position of the automatic transmission selector lever and make sure that the gearbox operates normally in each range.
