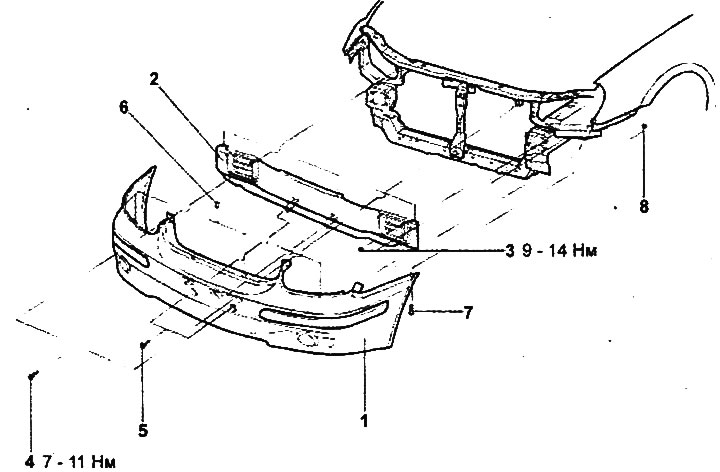

Front bumper.
1 - front bumper pad, 2 - bumper reinforcement, 3 - nut, 4 - bolt, 5 - bolt, 6 - retainer, 7 - screw, 8 - retainer
Withdrawal
1. Disconnect the headlight and front turn signal connectors, remove the headlight mounting bolts and remove the headlight assembly.

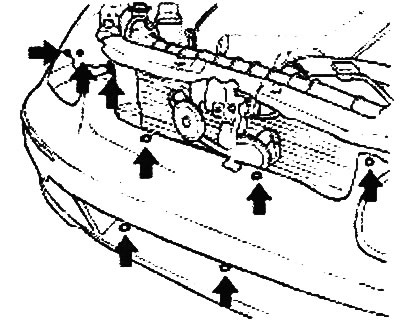

2. Turn away the top screws of fastening and disconnect clamps of fastening of a forward bumper.

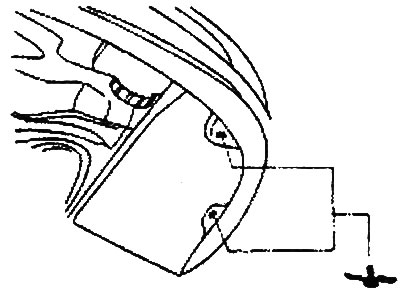

3. Disconnect the lower fasteners of fastening of an overlay of a forward bumper.
4. Remove the lower front bumper trim from the bumper reinforcement.

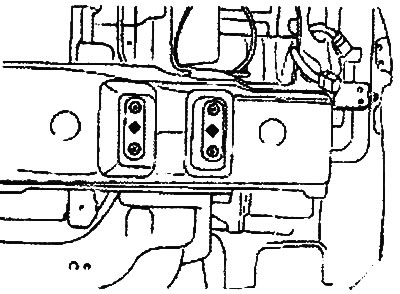

5. Turn away nuts of fastening of the amplifier of a forward bumper, then remove it
- Tightening torque: 9-14 Nm
Installation
6. Installation is made in an order, the return to removal.
