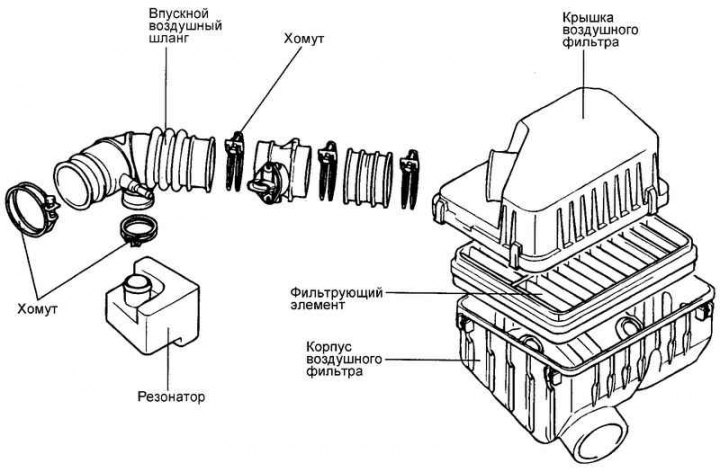

Fig. 2.190. Air filter components

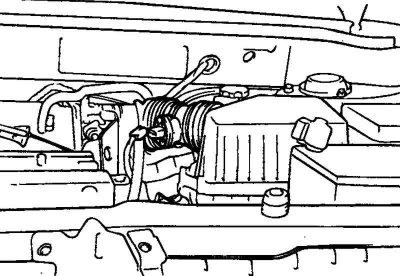

Fig. 2.191. Air filter housing
Removal
Disconnect the intake air duct from the air filter and resonator.
(The material is reprinted from another resource: «HYUNDAIBOOK.RU»)
Disconnect the air flow sensor connector.
Remove the three bolts securing the air filter housing.
Remove the air filter housing.
Remove the air flow sensor from the intake duct.
Caution! Do not carry or hang the sensor by the wires.
Examination
Check the air filter housing, cover and filter element for deformation, corrosion or damage.
Check the air intake duct for damage.

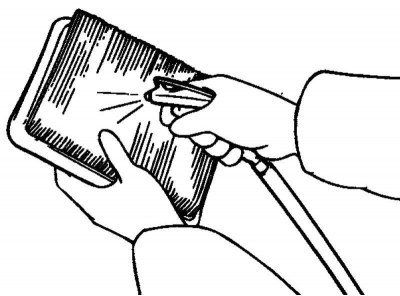

Fig. 2.192. Blowing out the air filter
Check the filter element for clogging, contamination or damage. If the filter element is slightly contaminated or clogged, remove dust and other contaminants by blowing it with compressed air from the outside (from the side facing the intake manifold) (Fig. 2.192).
Installation
Install the air filter in the reverse order of removal.
