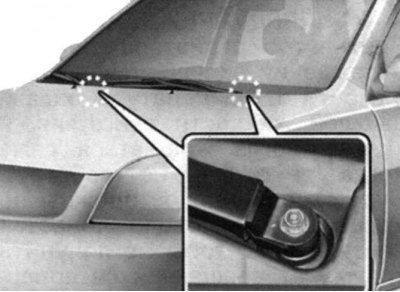

Fig. 1.213. Fastening the front wiper blades
Warning! Do not allow the wiper blades to operate on dry glass. This may cause rapid wear and scratches on the glass.
Caution! Avoid contact of petroleum products (gasoline, engine oil, etc.) with the rubber coating of the brushes.
Replacing windshield wiper blades
To replace the wiper blades, lift the wipers to the vertical position.

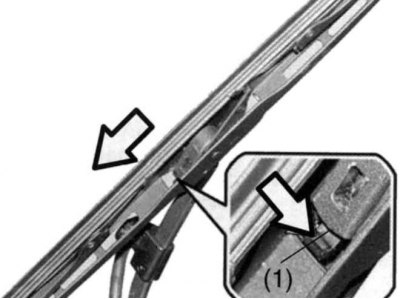

Fig. 1.214. Brush mounting clamp
Pull the wiper blade while pressing the lock 1 to remove it from the wiper arm (Fig. 1.214).

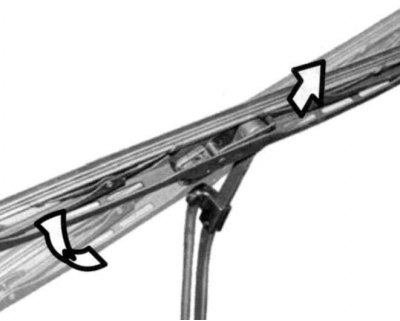

Fig. 1.215. Removing the brush
Lift the brush slightly and remove it (Fig. 1.215).
Installing brushes

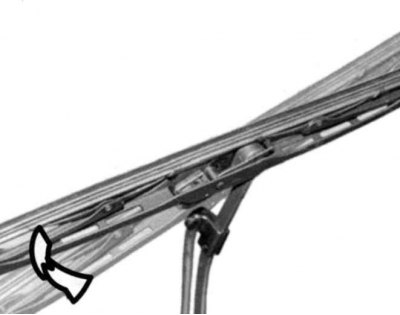

Fig. 1.216. Installing a new brush
Place the new blade on the wiper arm and slide it along the wiper arm to the level shown in the figure (Fig. 1.216).

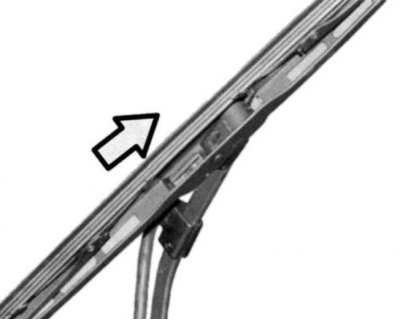

Fig. 1.217. Fixing the brush at the end of the lever
Place the brush on the lever until it "clicks" to secure it to the end of the lever (Fig. 1.217).
Note: Do not allow the spring-loaded wiper arm to fall onto the windshield.
