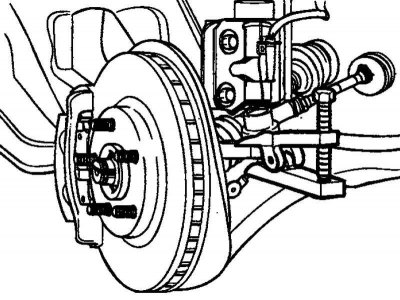

Fig. 5.3. Disconnecting the ball joint of the steering rod end from the steering knuckle
Using a special tool, disconnect the ball joint of the steering rod end from the steering knuckle (Fig. 5.3).
Wiggle the ball joint pin several times to check for excessive free play.

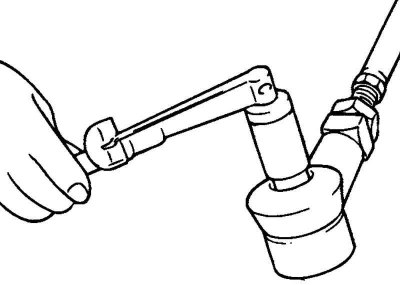

Fig. 5.4. Installing the nut on the ball joint pin
Screw the nut onto the ball joint pin, then measure the moment the joint starts to rotate (Fig. 5.4).
Nominal value: 0.5–2.5 Nm.
If the measured value is greater than the upper limit of the standard value, replace the tie rod end.
If the measured value is less than the lower limit of the standard value, check for excessive clearances or binding in the ball joint and replace if necessary.
