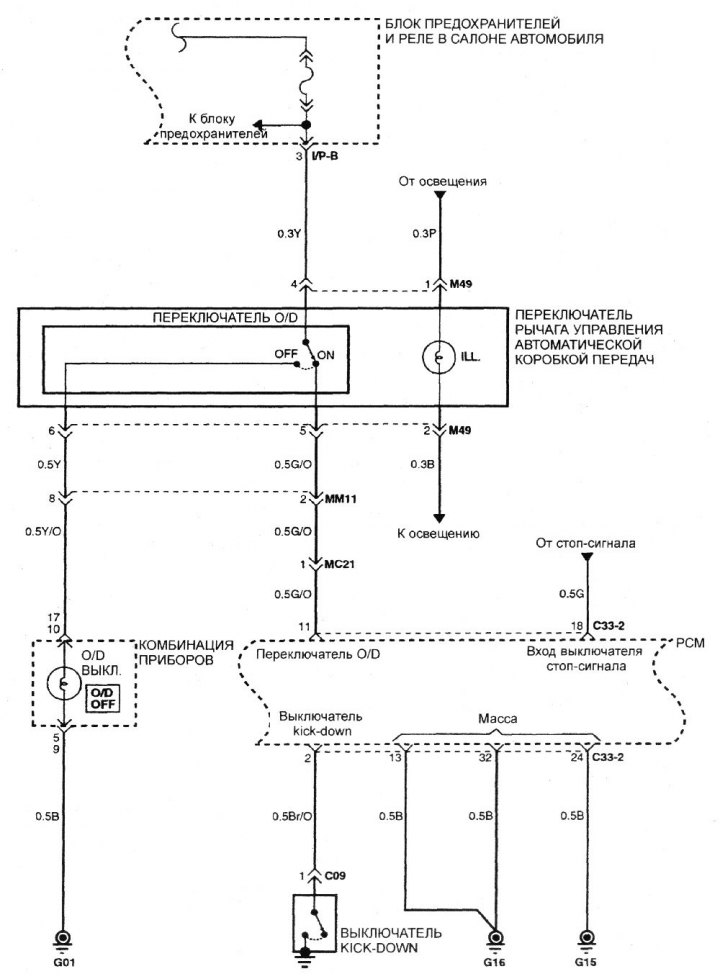

Electrical diagram of the automatic transmission control system
Automatic transmission diagram (Hyundai Getz 1)
