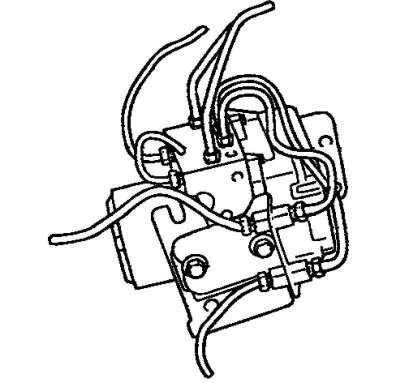

Pic. 6.62. ABS hydraulic unit brake pipes
Attention! Before connecting (or shutdown) Hi-Scan tester, turn the ignition key to position «Off» (OFF).
Attention! Raise the car with a jack and install support stands under it in specially designed places or install the wheels to be checked on the drums of the brake stand.
Attention! During the test, the surfaces of the drum of the brake tester and the tire must be dry.
Attention! When testing the front brakes, apply the parking brake, and when testing the rear brakes, block the front wheels.
Release the parking brake lever and check the resistance to rotation (moment of resistance) on every wheel.
When using a brake tester, record the resistance forces at each wheel.
Turn the ignition key to position «OFF» and connect the Hi-Scan or Hi-Scan Pro tester as shown.
Install the shift lever (models with manual transmission) or selector lever (models with automatic transmission) to neutral, then start the engine.
Note. If the ABS system has been disabled by an emergency function, then the test of the actuators using the Hi-Scan tester cannot be performed.
Using the Hi-Scan tester, forcibly activate the tested actuator.
