Contents: Scheme (1) ⇓ Scheme (2) ⇓

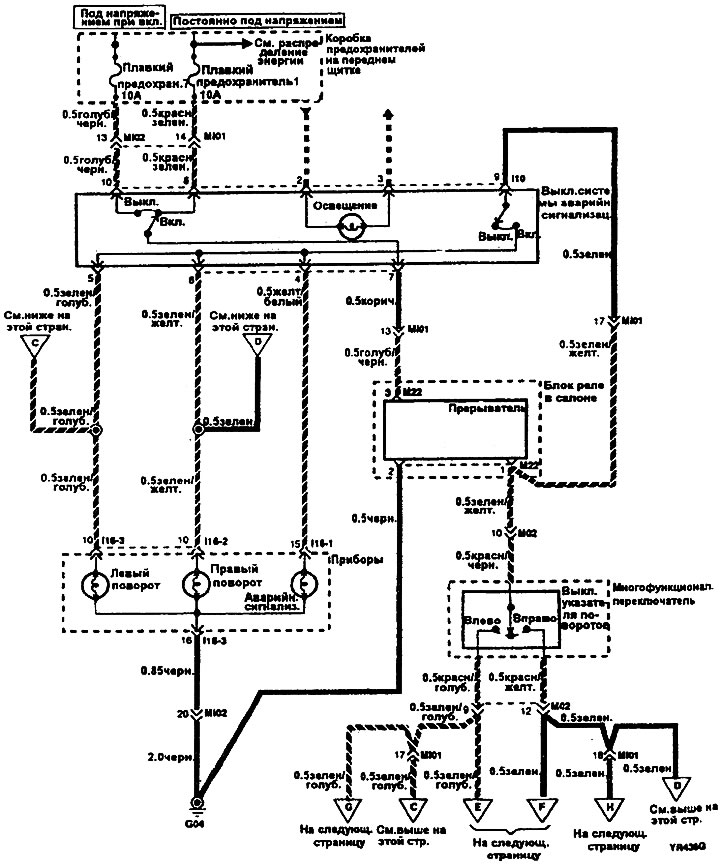

Scheme (1)

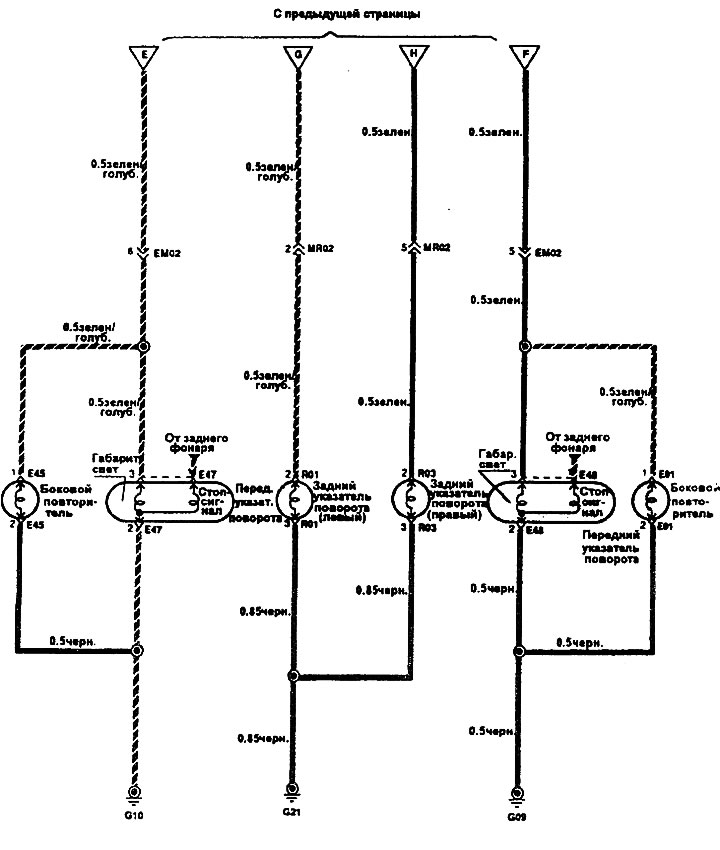

Scheme (2)
Direction indicators, hazard warning lights and side repeaters — diagrams (Hyundai Sonata Y3)
0
