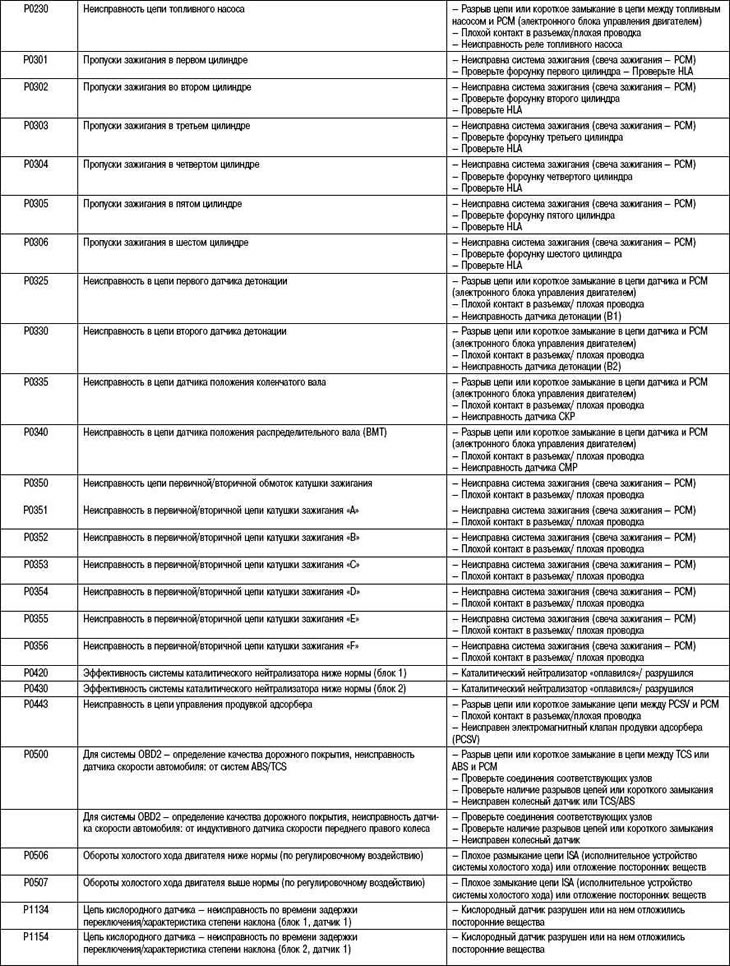

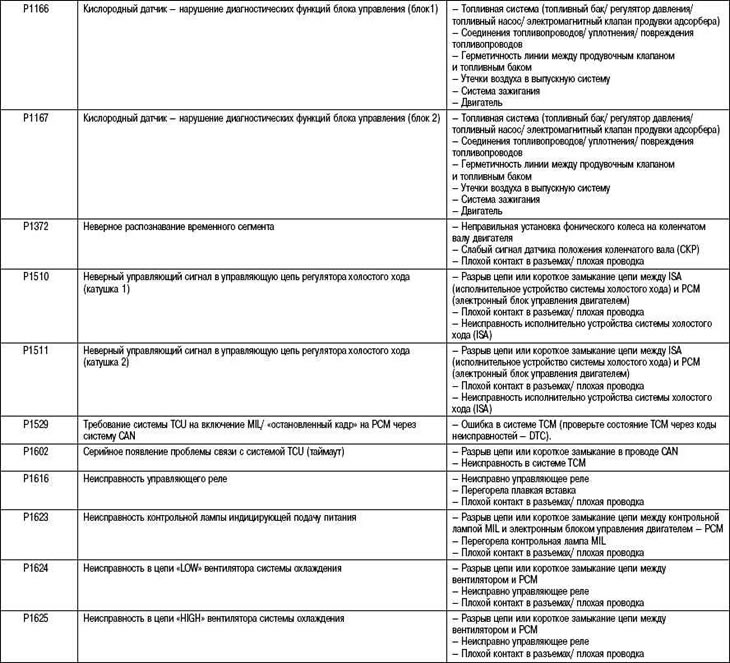

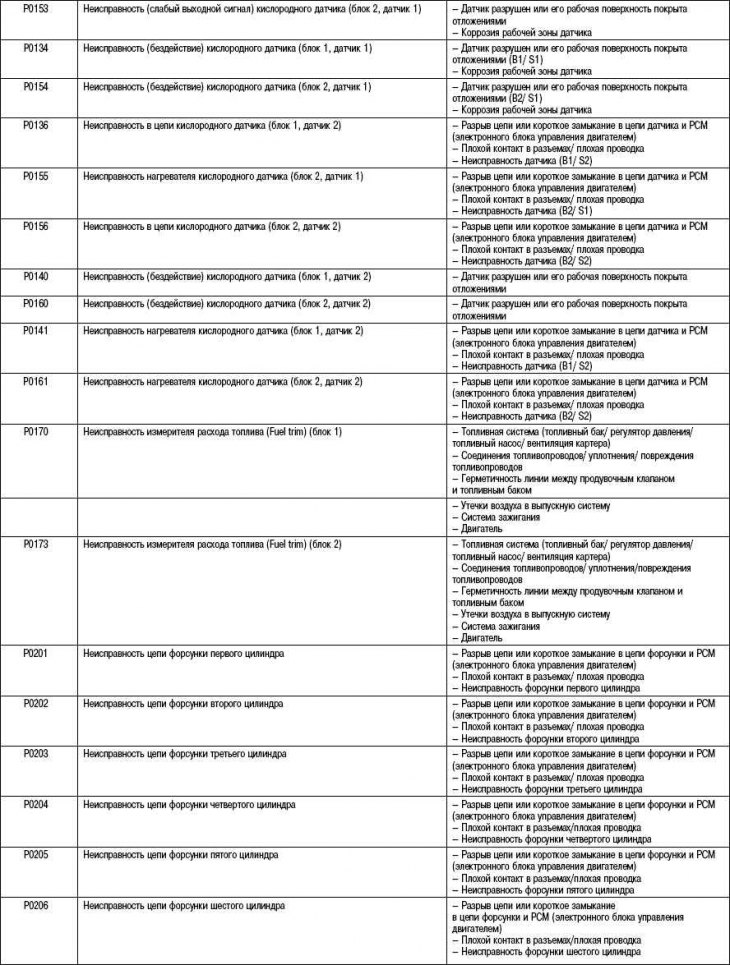

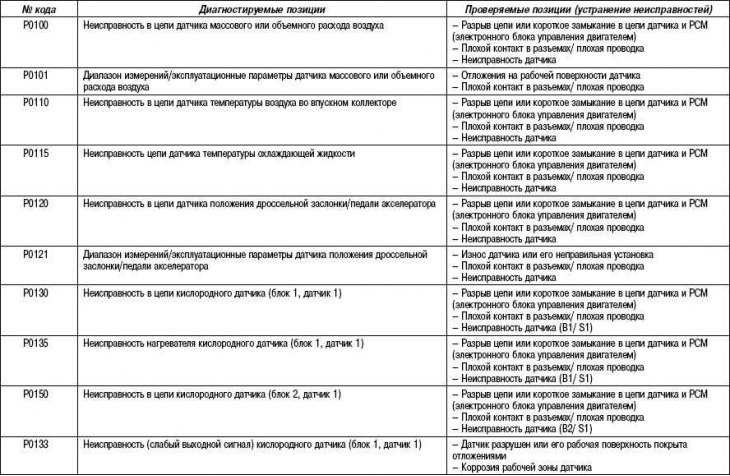

Table 2.31. Diagnostic Trouble Code (DTC) Related Malfunctions (for 2.7L and V6 Engine Vehicles)
Table 2.31. Diagnostic Trouble Code (DTC) Related Malfunctions (for 2.7L and V6 Engine Vehicles) (Hyundai Santa Fe CM)
0
This article is available at russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian
